The EinScan-SP provides a high quality yet affordable desktop scanning option with reverse engineering capabilities.
Key Features:
Desktop White Light 3D Scanner
.25 frames per second scan speed
Single frame scan <4 seconds
Color scanning included through use of RGB lights
Ideal for reverse engineering small objects
Hardware Recommendations:
Intel Core dual-core i5 or higher processor
NVidia GTX 660 series or higher graphics card
2 GB minimum VRAM and 16 GB minimum RAM
USB 3.0 and 2.0 connections
Supported OS: Windows 7, 8.1, 10 (64bit)
Please Note: This is a previously used demo unit. Includes three month Dynamism warranty.
EinScan Expert Certified
Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.
Founded in 1997, we bring next-generation technology to customers, with an emphasis on expertise and white-glove service. Showrooms in Chicago, Detroit, Tokyo, and Seoul.
Our Company
The leading national supplier of Desktop 3D printers. Expertise in both Industrial and Desktop 3D printing. Supplier of next-generation Metal, SLS, ultrafast Industrial printers.
Customer Benefits
White glove support
On-site support options
Training packages
Product Overview
EinScan SE/SP
Each scan generates a high-quality 3D data file
Structured light 3D scanning technology allows for detailed reconstruction of an object's real geometry. Please Note: For transparent, reflective, or dark objects, a surface treatment such as spray powder will be needed to capture surface features.
Easily output to formats compatible for 3D printing
Auto-meshing to watertight models allows for easy export of high quality 3D data which can be printed on any 3D printer.
Less hassle with automatic software
Features such as automatic calibration, one-click scanning, auto-alignment and fusion for direct mesh generation mean less time setting up and more time scanning.
Direct upload for online file saving and data sharing
Sketchfab integration with scanning software provides the opportunity for simple uploading and file sharing for users.
Easier operation, faster scanning, and enhanced efficiency

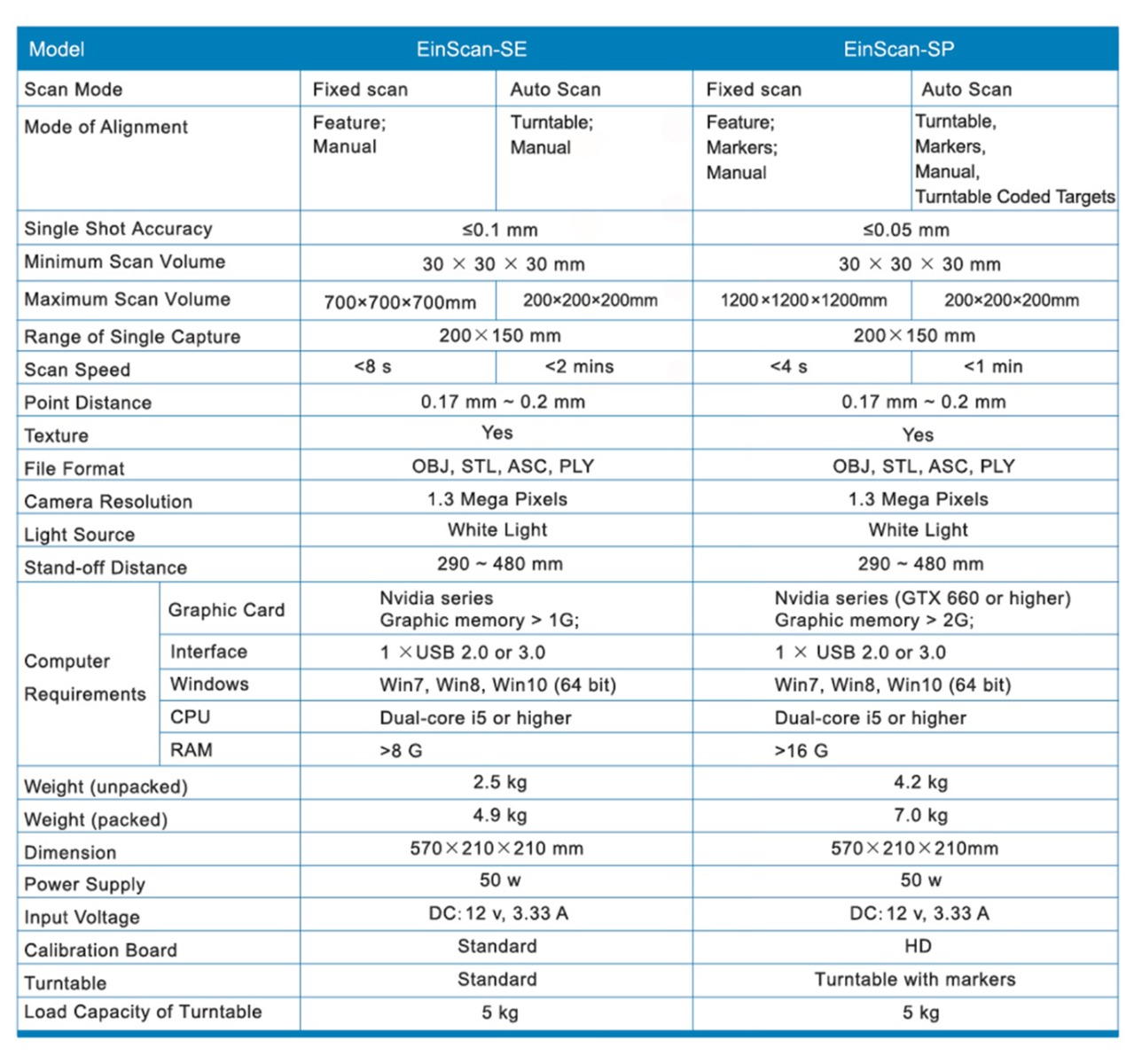

Time required for a single scan: EinScan-SE 8 seconds, EinScan-SP 4 seconds Time required for a 360-degree scan using auto-scan mode: EinScan-SE 2 minutes, EinScan-SP 1 minute Single shot accuracy: EinScan-SE .1mm, EinScan-SP .05mm
Dimensions: 57 x 21 x 21 cm [22.44 x 8.27 x 8.27 in] Shipping Weight: SE Model: 4.9 kg [10.78 lb] SP Model: 7 kg [15.4 lb] Weight: SE Model: 2.5 kg [5.5 lb] SP Model: 4.2 kg [9.24 lb]
Hardware Requirements RAM: 8GB CPU: Minimum dual-core i5 Graphics: SE Model: Discrete GPU, min 1GB video memory SP Model: GTX 660 or higher, min 2GB video memory Connectivity:
1x USB 2.0 or USB 3.0 for data
Additional included AC adapter for power
Load Capacity of Turntable: 5 kg [11 lb] Minimum Scan Volume: 3 x 3 x 3 cm [1.18 x 1.18 x 1.18 in] Range of Single Capture: 20 x 15 cm [7.87 x 5.91 in] Point Distance: 0.17 mm - 0.2 mm Texture: Yes Single Shot Accuracy: SE Model: ≤0.1 mm SP Model: ≤0.05 mm Scan Speed: SE Model: <8 seconds SP Model: <4 seconds Camera Resolution: 1.3 MP Light Source: White Light
